Hexaflexagon

The hexaflexagon has 6 triangles meeting in the center. Three variants are described here:

  • equilateral made from 60-60-60 triangles
  • bronze made from 60-30-90 triangles
  • star made from 60-14-106 triangles
hexaflexagon pictures

Equilateral Triangle Hexaflexagon

If someone knows something about flexagons, they most likely know the hexaflexagon made out of equilateral triangles. It was the first flexagon discovered and is the most popular variety.

While many people have written about it before, few have explored the rich variety of flexes you can perfrom on it. The common flex people describe is called the pinch flex and sometimes you can find reference to the v-flex. Much less well known are the slot flex, pocket flex, pyramid shuffle, and tuck flex. The following video demonstrates these flexes.

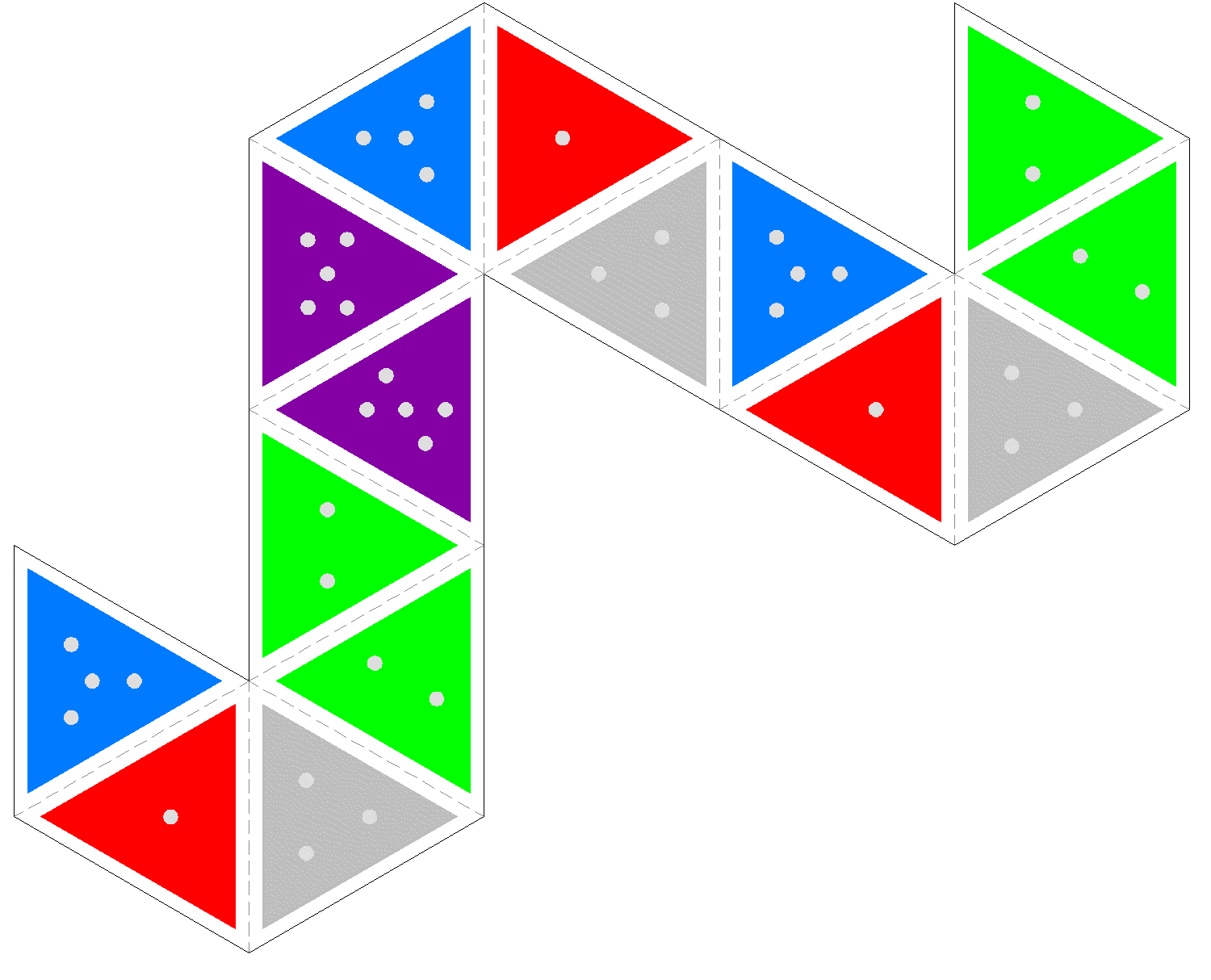

To make this hexaflexagon, click on the following two thumbnails to get larger versions. Print them then cut them out. Paste them back-to-back so one end of the strip has a 5 on one side and a 4 on the other side and the other end has 3 on one side and 2 on the other. Pre-fold along the dotted lines. Now fold the adjacent pairs of 5's together, followed by the adjacent pairs of 2's, then 3's. You should now have a hexagon with all 1's on one side and all 4's on the other. Tape together the first and last triangles in the strip to complete it.

side a
side b

One type of strip used in making equilateral triangle hexaflexagons is called a braid. Braids happen to be the only way to make an equilateral triangle tetraflexagon and they also make an interesting hexaflexagon. The first few braids can be found here. Note that the video shows the 5-sided version, with the sides numbered from 1-5 instead of 0-4.

I've posted state diagrams for several hexaflexagons as examples of how you can map out all the states of a flexagon using a variety of flexes.

Bronze Hexaflexagon

This one is made from 30-60-90 (bronze) triangles. When the 60 degree angles are in the center, you have a flat triangle. When the 90 degree angles are in the center, it doesnít lie flat, giving you sort of a flower shape. When the 30 degree angles are in the center, you get a cone that doesnít open all the way so you canít flex through to the next position.

Cut out the net and pre-crease all the edges. Copy the small numbers on to the back. For the three sided version, fold adjacent 3ís together and tape the tabs onto the appropriate faces labeled with a 2. Doing a pinch flex on side 1 gives you a cone with 3 on the inside. Doing a pinch flex on a side 2 gives you side 3 as a tripod. A second pinch flex gives you a cone with side 1 on the inside.

net for bronze hexaflexagon with 3 sides

With this six sided version, start by folding 6 on 6, 5 on 5 and 4 on 4. If you then fold 2 on 2, you can fold it into a cone shape with 1ís on the outside and 3ís on the inside, allowing you to tape the flaps onto the appropriate faces. From here, two successive pinch flexes give you a triangle with 3 on one side and 2 on the other. With experimentation, you should be able to find all 6 faces. This is the equivalent of a hexahexaflexagon made from a straight strip, so knowing the Tuckerman traverse for that one will help you figure out this one.

net for bronze hexaflexagon with 6 sides

However, due to the right angles, there are additional flexes you can do. Start from the state where 2ís are on one side and 3ís are on the other. Fold it in half in any direction. You should be able to find a flap that opens up flat into a diamond shape with an extra triangle sticking off the edge. This flap can be folded backwards along the opposite diagonal. When you open up the resulting shape, youíll have a cone with the faces mixed up. You can flex from here into a triangle.

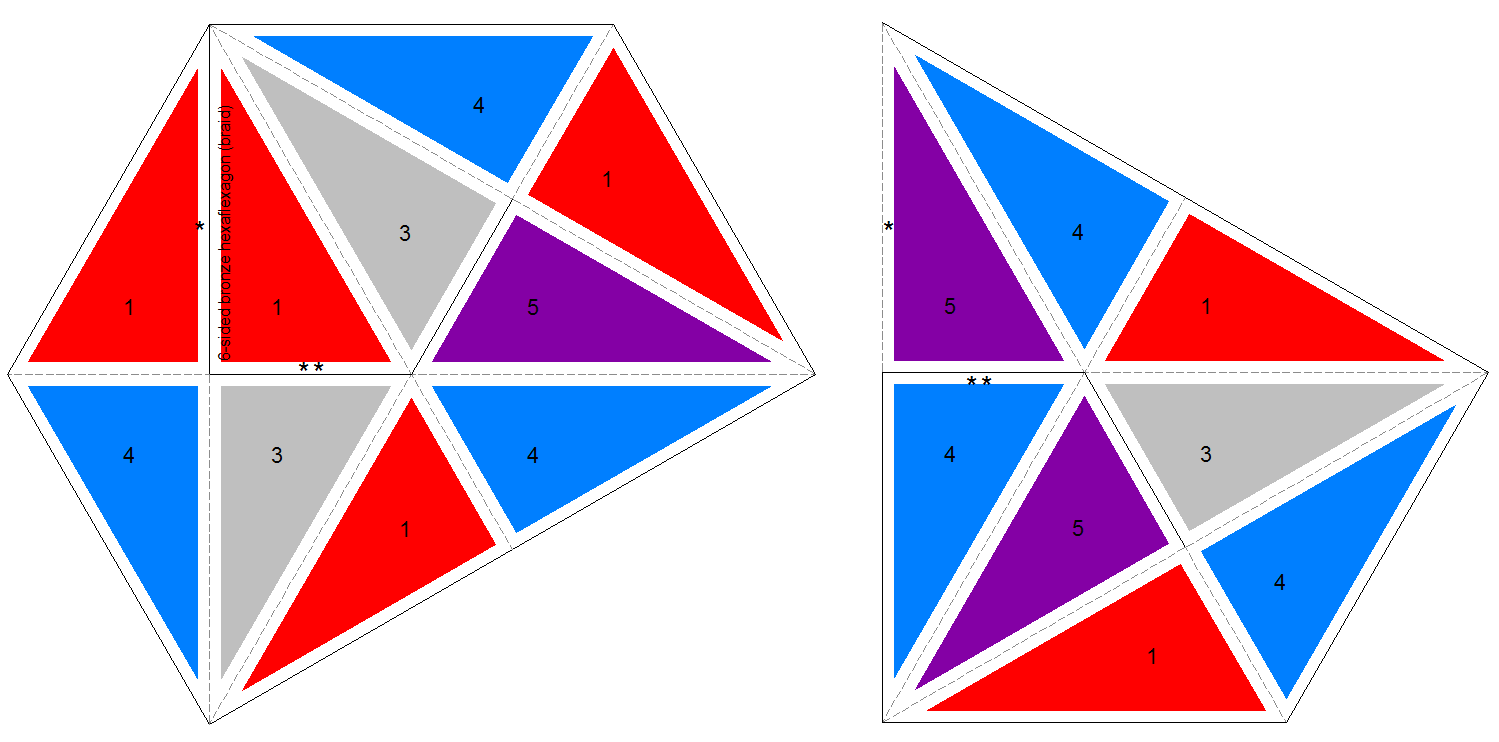

The following 6 sided variant is shown in the video above, including how to fold it. To make it, first click on the two thumbnails to get the larger versions. Either print the second side on the back of the first or print them out separately and paste them together. Cut along the black lines then precrease along the gray dashed lines. Tape together the two edges with a single * on them to make a single strip. Now fold the adjacent 6's together, followed by the 5's, 4's and 3's. Finish by taping together the two sides with the ** pairs on them.

net for bronze hexaflexagon with 6 sides net for bronze hexaflexagon with 6 sides

Star Hexaflexagon

This one is tricky to fold because of the sharp angles. It's also not quite as interesting as some of the other star flexagons, e.g. the star dodecaflexagon.

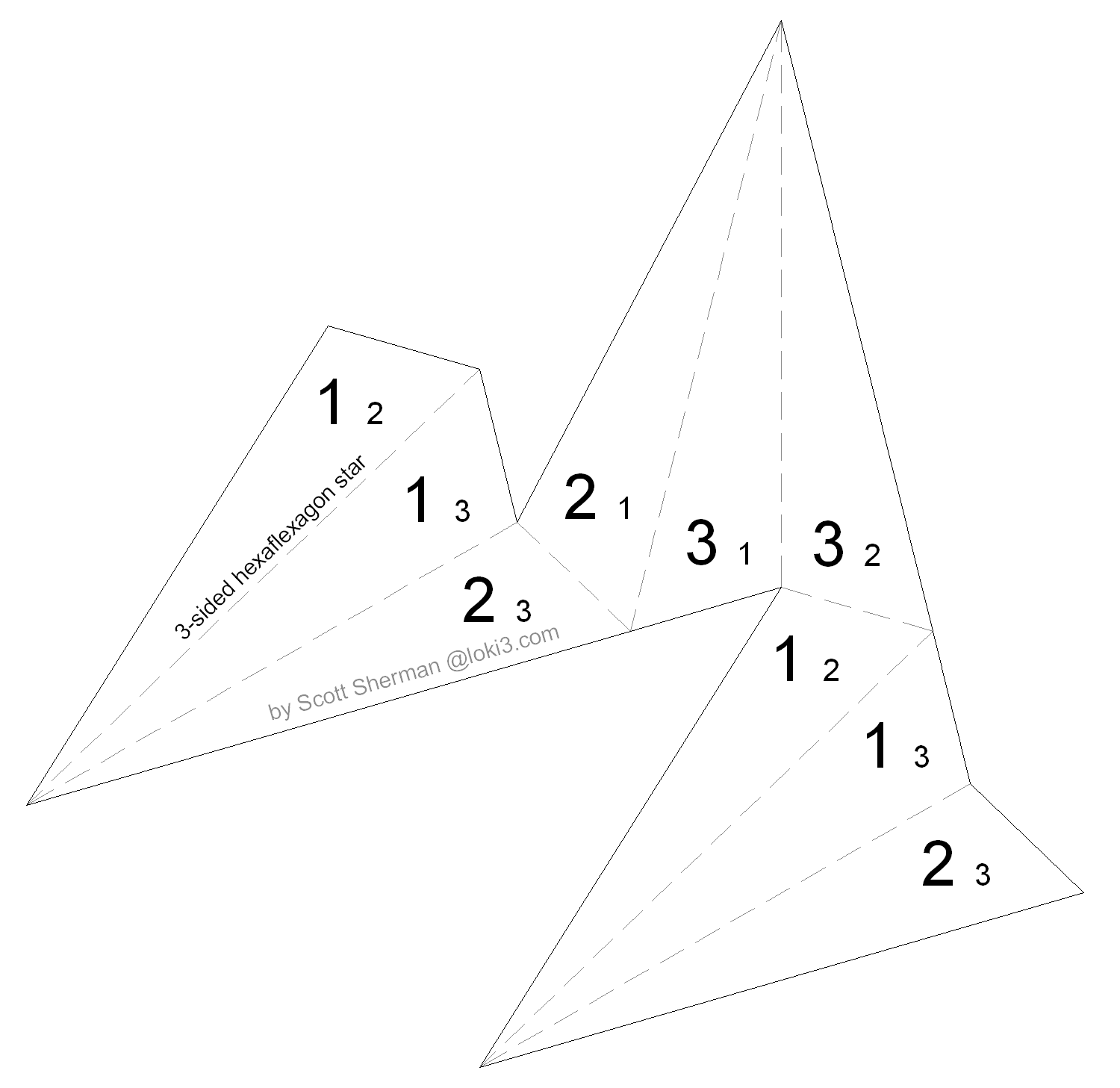

net for star hexaflexagon with 3 sides

Cut along the solid lines and pre-fold along the dashed lines. Copy the small numbers onto the backs of the triangles. Fold each pair of adjacent 3's together so you have a 3 pointed star. Tape the first and last triangles together, leaving you with all 1's on one side and all 2's on the other.

One flex that works on this star flexagon is the pivot flex.


Next: The Heptaflexagon

Some of the possible flexes

Bronze Hexaflexagon Picture Puzzle
